*****The table shown has all the features available on this table.*****
*****The base price for the table is $14,715.00 and does NOT include any of the extra features.*****
****PRICE OF THE TABLE DOES not INCLUDE ANY ADDITIONAL OPTIONS and SHIPPING CHARGES. PLEASE CALL 309-264-7127 OR EMAIL info@rpschiro.com BEFORE PLACING ORDER TO GET A QUOTE ON ANY ADDITIONAL OPTIONS & SHIPPING CHARGES (TABLE IS SHIPPED BY FREIGHT COMPANY and cannot be calculated through the website at time of checkout) AND WE WILL email the information to you****

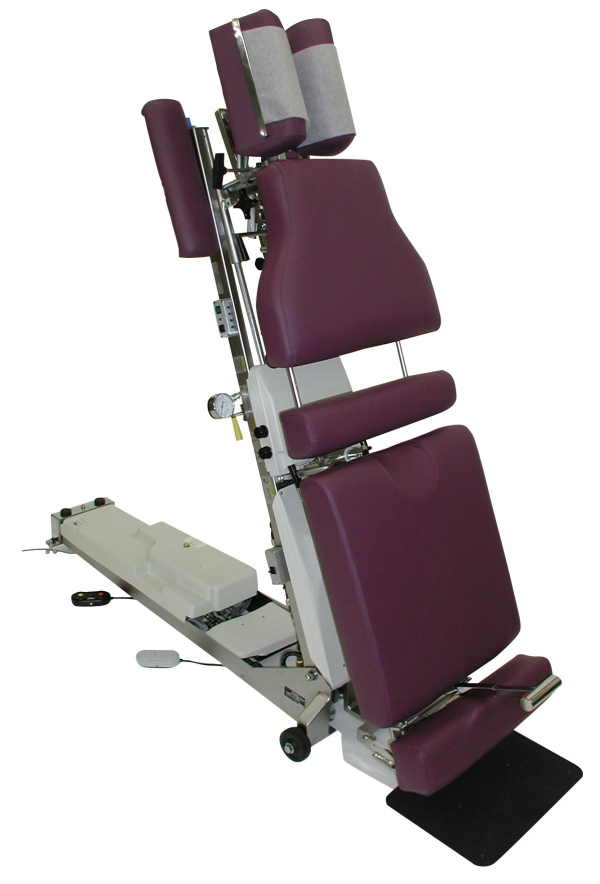

The Galaxy McManis Hylo is a flexion distraction table designed with both doctor and patient in mind. Available in 22″ to 28″ heights, it features fully adjustable head, chest, lumbar and ankle sections. Simple control levers provide precision control of the pelvic flexion with lateral bending and traction.
The standard chest lumbar section, with spring breakaway, is designed to comfortably accommodate pregnant or large abdominal patients. A lumbar extension combined with extendable and retractable pelvic and ankle sections makes it possible to accommodate patients from 5′ to 6′ 11″.
The McManis Hylo is smoothly tilted or lowered hydraulically at infinitely adjustable speeds from horizonal to 70°, and controlled by foot pedals from either side of the table. The footplate falls away flat on the floor when the table is lowered to a horizontal position. A safety switch prevents the table from accidentally lowering from the hylo position.
Standard Features:
Deluxe/Adjustable headpiece
One piece adjustable chest with adjustable tension spring breakaway
Lumbar extension cushion
Chest/Pelvic separation
Extension/Retraction of length (power)
Pelvic Section:
Flexion Distraction (Manual & Semi-Auto)
Lateral Bending
Axial Extension/Retraction (power)
Adjustable Ankle Rest (vertical & horizontal)
Ankle Straps
Automatic drop away footplate
Speed adjustment of hylo feature
Tilt safety switch
Table Specifications:
Height Range – 22″ to 28″
Length – Extended 91″Length – Retracted
(Including Footplate) 81″
(Excluding Footplate) 65″
Cushion Width – 21″
Table Width – 22″
Shipping Weight – 400 lbs. (approx.)
Actual Weight – 350 lbs. (approx.)
Optional Equipment:
Head Section:
Straight Drop Headpiece – additional $680.00
Adjustable Forward Motion & Straight Drop Head (Manual/Automatic) – manual is additional $1,190.00 – automatic is additional $1,540.00
Total Dimension Flexion (includes Forward & Straight Drop, Elevation, Rotation, Lateral Bending, Manual Flexion & Manual Extension & Retraction, Cervical Flexion Assist Handle & Harness, Adjustable Width) – additional $3,010.00
Chest/Lumbar Section: (All New T-Style/Total Response Drop System Now Standard):
Chest and Lumbar Drop (One Piece Cushion) (Manual) – additional $1,910.00
Chest and Lumbar Drop (One Piece Cushion) (Manual & Automatic)(Selector Valve Not Included) – additional $2,480.00
Pre 2005 Drop Style Chest & Lumbar (2 Piece Cushions), ADD to Drop Charge – additional $500.00
Spring Breakaway Chest with Adjustable Tension (Add if Chest/Lumbar Drop is Ordered) – additional $580.00
Chest Rotation (Includes Spring Breakaway-without Adjustable Tension):
When Standard Chest is Ordered – additional $1,960.00
When Chest/Lumbar Drop is ordered (Add to Drop Charge) – additional $1,550.00
Standard Chest (2 Cushions – No Drops) – additional $170.00
Split Chest with Filler – additional $175.00
Breast Cushion (Center Section Firm Foam, Outer Sections Softer Foam) – additional $83.00
Pelvic Section & Other Options: (All New T-Style/Total Response Drop System Now Standard):
Pelvic Drop (Manual) – additional $1,750.00
Pelvic Drop (Manual & Automatic):
Ultimate, McManis Elevation , McManis Hylo – additional $3,170.00
Pelvic Rotation – additional $550.00
Drop Ankle (Manual Only) (Includes Vertical Ankle Rest) – additional $1,090.00
Automatic Flexion – McManis Elevation & McManis Hylo – additional $1,370.00
Telescoping T-Bar – additional $280.00
Angled T-Bar – additional $400.00
Grab Bar – additional $420.00
Replacement Ankle Straps (Pair) – additional $120.00
Available Colors:
Cardinal, Peacock, Chaps, Water, Black Cherry, Dark Tel, Ruby, Forest, Madder Brown, Wine, Raspberry, Deep Sapphire, Light Gray (Apollo), Whitecap (Apollo), Blue Water (Apollo), Black (Apollo), Navy (Apollo), Charcoal (Apollo) (see the category “Color Swatches”)
Special Order Colors: additional charges may apply
Cinder/Charcoal (Finesse), Black (Finesse), Navy (Finesse)
